In this tutorial, I explain how to create a simple streaming replication setting using pgpool-II step by step. You need three Linux boxes: one is for pgpool-II itself and pgpoolAdmin, and the others for PostgreSQL. Needless to say you could use virtual machines to simulate those three servers.
Though the setting is simple, it makes possible to implement important functionalities which PostgreSQL 9.1 lacks:
In this configuration, if the host where pgool-II is running on, you cannot access database via pgpool-II anymore. To overcome the problem, you can create a high availabilty configuration by using pgpool-HA. Pgpool-HA is an open source project and you can obtain the source code from the pgpool-II development site.

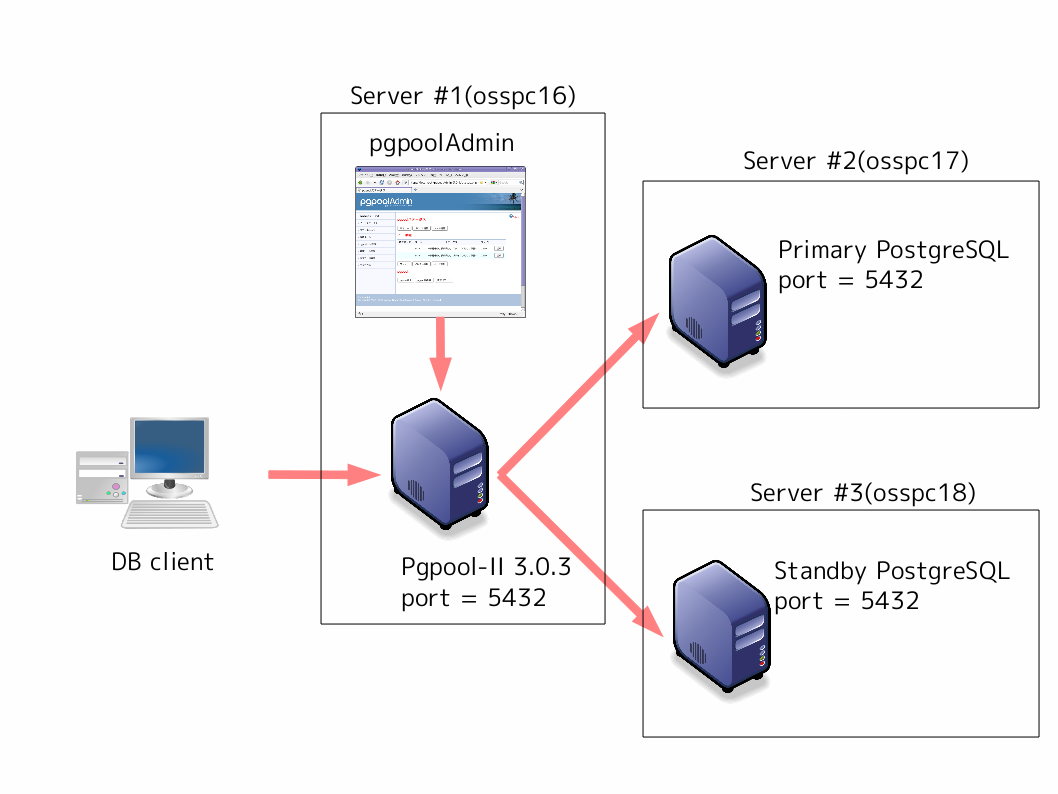

Here is the overall picture of the installation.
Please note that in this figure the server #1(hostname is "osspc16") is assigned to pgpool-II and pgpoolAdmin. The server #2 (hostname is "osspc17") is for the primary PostgreSQL server. The server #3 (hostname is "osspc18") is for the standby PostgreSQL server. Please note that this is just a initial setting and afterward you can interchange the role of each PostgreSQL by using online recovery.
The easiest way is downloading Linux package from PostgreSQL official site.
Another way to install PostgreSQL is from the source code. This is surprisingly easy actually. Just unpack the tar ball and configure;make;make install. See the PostgreSQL manual for more details.
>From now on, I assume that database clusters are located at /home/postgres/data and are owned by postgres user:
$ initdb -D /home/postgres/data
Next add followings to /home/postgres/data/postgresql.conf. "logging_collector" and below are not really relevant to Streaming replication but they are my favorites to make my life easier. You might want to remove "log_statement = 'all'" in production environment however.
listen_address = '*' hot_standby = on wal_level = hot_standby max_wal_senders = 1 logging_collector = on log_filename = '%A.log' log_line_prefix = '%p %t ' log_truncate_on_rotation = on log_statement = 'all'
Put pg_hba.conf to /home/postgres/data. Of course you need to replace "/some/where/" with actual directory where you downloaded the scripts. Caution: settings here allows to access from any IP address. Please apply appropriate setting for your real world systems.
$ cp /some/where/pg_hba.conf /home/postgres/data
Start PostgreSQL server on occp17 and osspc18. At this poing those PostgreSQL servers will run as primary server, thus no streaming replication is working).
$ pg_ctl -D /home/postgres/data start
Next you need to allow postgres user on osspc17 and osspc18 can acceess each other without password. Execute ssh-keygen command as postgres and append the contents of /home/postgres/.ssh/id_rsa.pub to /home/postgres/.ssh/authorized_keys of other server. After this we recommend to test the setting by executing ls command via ssh, for example.
$ ssh osspc17 ls
Install pgpool-II onto osspc16. In this configuration explained here you need pgpool-II 3.1.1 or later.
$ tar xfz /some/where/pgpool-II-3.1.1.tar.gz $ cd pgpool-II-3.1.1 $ ./configure $ make $ sudo make install
Next install user defined functions used by pgpool-II onto PostgreSQL. Execute followings as postgres user on occp17 and osspc18. "install-functions.sh" can be downloaded here. Of course you need to replace "/some/where/" with actual directory where you downloaded the scripts. You should decompress pgpool-II-3.1.1.tar.gz before execute it.
$ tar xfz /some/where/pgpool-II-3.1.1.tar.gz $ cd pgpool-II-3.1.1 $ cp /some/where/install-functions.sh . $ sh install-functions.sh
Next you need to install pgpool-II configuration files onto occp16. The main configuration file is pgpool.conf. The other one is the pcp.conf. You will need to execute followings as root.
# cp /some/where/pgpool.conf /usr/local/etc # chown apache /usr/local/etc/pgpool.conf # cp /some/where/pcp.conf /usr/local/etc # chown apache /usr/local/etc/pcp.conf
The reason why we execute chown is, pgpoolAdmin need to modify those files. pgpoolAdmin is a PHP script thus executed by Apache. If you have no plan to use pgpoolAdmin(that measn you want to use pcp command line admin tools only), you do not need to execute chown.
The initial password for "postgres" in the pcp.conf is "pgpoolAdmin". I strongly recommend to change the password immediately after finishing the installation. The new password string can be obtained using pg_md5 command. See the pgpool-II doc for more details.
Install basebackup.sh and pgpool_remote_start, neccessary for online recovery onto osspc17 and osspc18. Note that in pgpool_remote_start the path to pg_ctl command is specified. You might want to change it to an appropreate path according to your PostgreSQL installation.
$ cp /some/where/baseback.sh /home/postgres/data $ chmod 755 basebackup.sh $ cp /some/where/pgpool_remote_start /home/postgres/data $ chmod 755 pgpool_remote_start
Install failover.sh for automatic failover onto osspc16.
$ sudo cp /some/where/failover.sh /usr/local/etc $ chmod 755 failover.sh
Create neccessary directories on osspc16. Execute followings as root. The reason why we use chown is, pgpool-II is started by pgpoolAdmin. If you do not have a plan to use pgpoolAdmin, you need to change "apache" to the user you want to invoke pgpool-II.
# mkdir /var/run/pgpool # chown apache /var/run/pgpool # mkdir /var/log/pgpool # chown apache /var/log/pgpool
Create neccessary directories on osspc17 and osspc18. Execute followings as root.
# mkdir /var/log/pgpool/trigger # chown postgres /var/log/pgpool/trigger
If you plan to use pgpoolAdmin, you need to allow apache user on osspc16 accesses postgres uer on osspc17 and postgres user on osspc18. In most systems, login to the system as apache user is prohibited.
Change temporarily /sbin/nologin to /bin/bash for example, to allow login. Create /var/www/.ssh and execute ssh-keygen.
# mkdir /var/www/.ssh # chown apache /var/www/.ssh # su - apache $ ssh-keygen : :
Add /var/www/.ssh/id_rsa.pub to /home/postggres/.ssh/authorized_keys on osspc17 and osspc18. After this we recommend to test the setting by executing ls command via ssh, for example do followings as apache user.
$ ssh postgres@osspc17 ls $ ssh postgres@osspc18 ls
Revert /etc/passwd. In the real world system it is recommended that you create an account solely used fro pgpoolAdmin and start its own apache.
Create apache user on osspc17 and osspc18.
$ createuser apache Shall the new role be a superuser? (y/n) n Shall the new role be allowed to create databases? (y/n) n Shall the new role be allowed to create more new roles? (y/n) n
Stop PostgreSQL on osspc18 and execute followings on osspc18.
$ pg_ctl -D /home/postgres/data -m f stop
pgpoolAdmin is a management tool for pgpool-II written in PHP. pgpoolAdmin must be executed on the same host which pgpool-II is running on. This effectively means that pgpoolAdmin does not work on Windows platform. pgpoolAdmin runs on PHP 4.2 or higher. It also needs PostgreSQL extention. If you plan to build PHP, please include --with-pgsql option. If you plan to install PHP from rpm. you may need to install PostgreSQL extension as well. Some distributions have built-in support for PostgreSQL extention, but most distributions do not.
pgpoolAdmin has its own installer thus it is pretty easy to install pgpoolAdmin. In this configuration you need to install pgpoolAdmin 3.1.1 or later(or CVS HEAD). Unpack it under Apache document directory(for example, /var/www/html/). Follow the install instruction, located at doc/install/install.html. Here are several key points before installing pgpoolAdmin by using Web installer.
# cd /var/www/html/pgpoolAdmin-3.1.1 # chmod 777 templates_c # chown apache conf/pgmgt.conf.php # chmod 644 conf/pgmgt.conf.php
Once you are prepared, brows the pgpoolAdmin install using your favorite Web browser. In this example, the URL will be http://localhost/pgpoolAdmin-3.1.1/install/index.php. You will see this page. Click "Next" and you will see this this page. Please make sure that all items are checked by green. This indicates that everytyhing is good. Click "Next". This is the main setting page. Several points you want to change from default values:
Once you've done, the page should look like this. You finished to install pgpoolAdmin. Conguratulations!
Login to pgpoolAdmin and start pgpool-II from "pgpool status" menu. You see osspc17 port 5432 PostgreSQL is running as a primary server. You should be able to connect to osspc16 port 5432 by using psql. Let's try to create a table.
$ createdb -h osspc16 test $ psql -h osspc16 test test=# create table t1(i int); CREATE TABLE test=#
You will find something like this in the pgpool log.
$ tail /var/log/pgpool/pgpool.log.Friday 2011-03-11 23:12:55 LOG: pid 4148: DB node id: 0 backend pid: 4607 statement: create table t1(i int);
You will see same thing in the PostgreSQL log as well.
$ tail /home/postgres/data/pg_log/Friday.log 4607 2011-03-11 23:12:55 JST LOG: statement: create table t1(i int);
At this point standby server is not running. To start standby server, just click "Recovery" button. "basebackup.sh" will be executed and the standby server will be automatically started.
Once standby server is running, streaming replication starts. Let's insert some data into t1.
-- insert into t1 via pgpool-II. -- it will be executed on primary server psql -h osspc16 test test=# insert into t1 values(1); test=# \q psql -h osspc18 test -- now connected to standby server test=# select * from t1; i --- 1 (1 row)
If standby goes down, it is disconnected from pgpool-II. Users can issue SQL via pgpool-II as usual. Just streaming replication is stopped. To recover standby server, click "Recovery" button.
Don't panic. Standby server is there for this situation. Let the current primary server be osspc17. Login to osspc17 and stop PostgreSQL.
$ pg_ctl -D /home/postgres/data -m f stop
As you can see, osspc17 PostgreSQL goes down and osspc18 PostgreSQL takes over the primary role. When pgpool-II finds that primary is going down it executes failover script(failover.sh). The script creates trigger file as osspc18:/var/log/pgpool/trigger/trigger1. Standby server on osspc18 finds the file and decides to promote to primary. If you click the "Recovery" button osspc17 PostgreSQL, the former primary server will be recovered as standby server.
PostgreSQL 9.1 supports simple and easy to use built-in replication system. Adding pgpool-II on top of the replication system it is possible to build a high availability(HA) system.
If you have questions and/or comments, please post to pgpool-general mailing list.
ishii at sraoss.co.jp
